# Zep Memory

[Zep](https://github.com/getzep/zep) is long-term memory store for LLM applications. It stores, summarizes, embeds, indexes, and enriches LLM app / chatbot histories, and exposes them via simple, low-latency APIs.

## Guide to Deploy Zep to Render

You can easily deploy Zep to cloud services like [Render](https://render.com/), [Flyio](https://fly.io/). If you prefer to test it locally, you can also spin up a docker container by following their [quick guide](https://github.com/getzep/zep#quick-start).

In this example, we are going to deploy to Render.

1. Head over to [Zep Repo](https://github.com/getzep/zep#quick-start) and click **Deploy to Render**

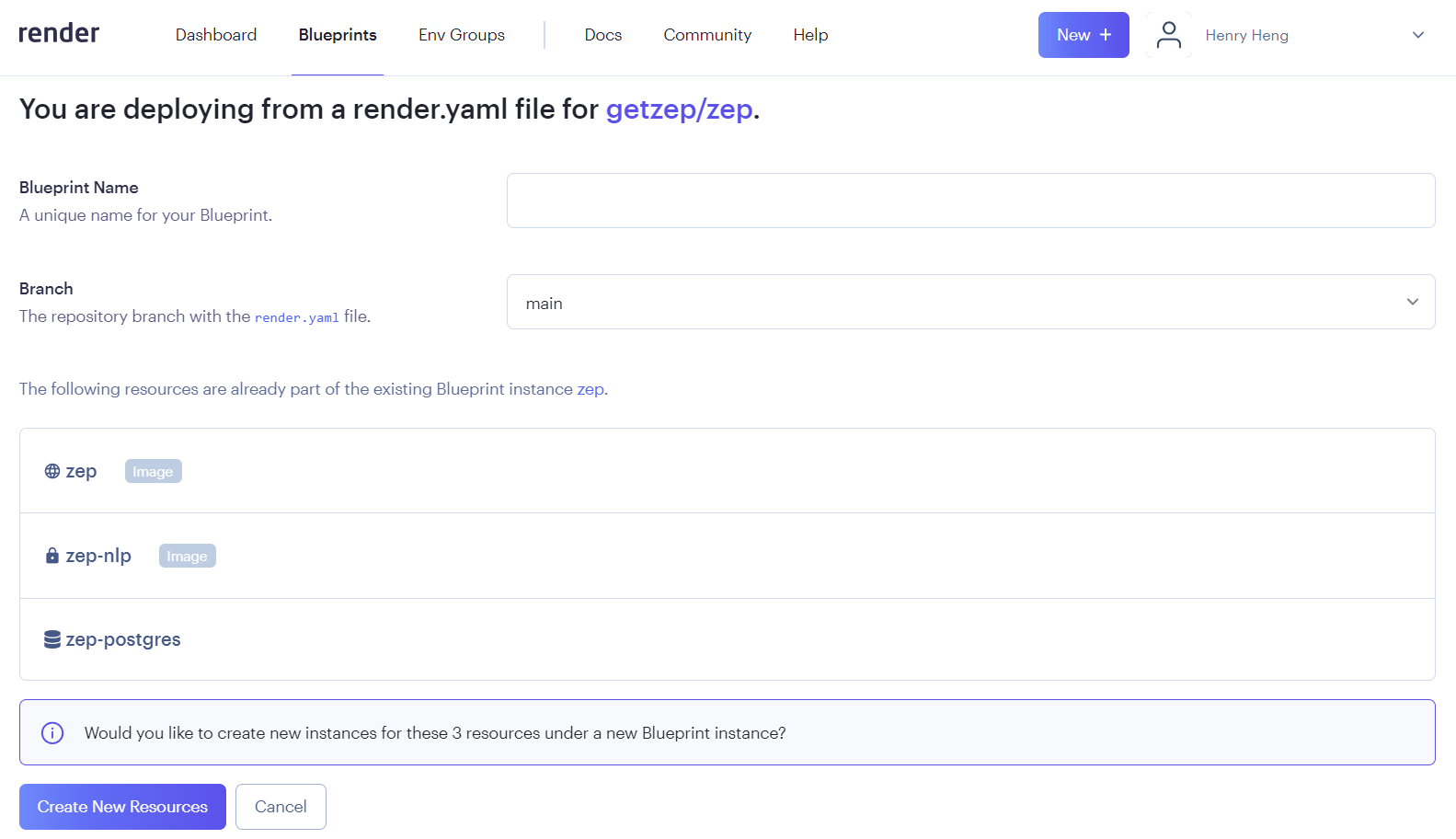

2. This will bring you to Render's Blueprint page and simply click **Create New Resources**

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-18bdf929b8aa58a19b662efc201a787ab6a26886%2Fimage%20(21)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

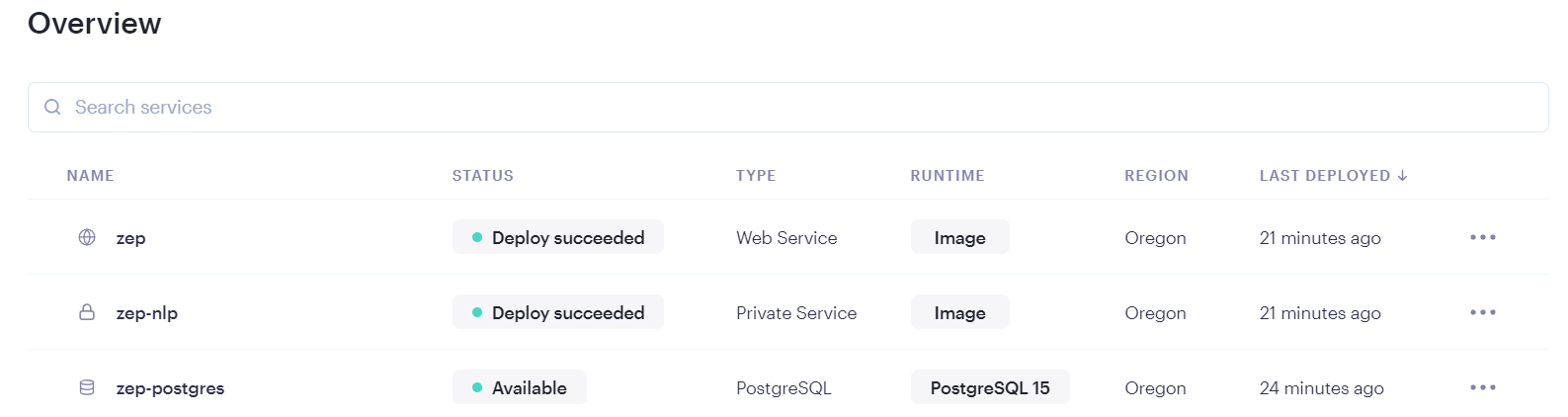

3. When the deployment is done, you should see 3 applications created on your dashboard

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-42228062a2f14c7e37f7b86df3312ed05653e59b%2Fimage%20(1)%20(2).png?alt=media" alt=""><figcaption></figcaption></figure>

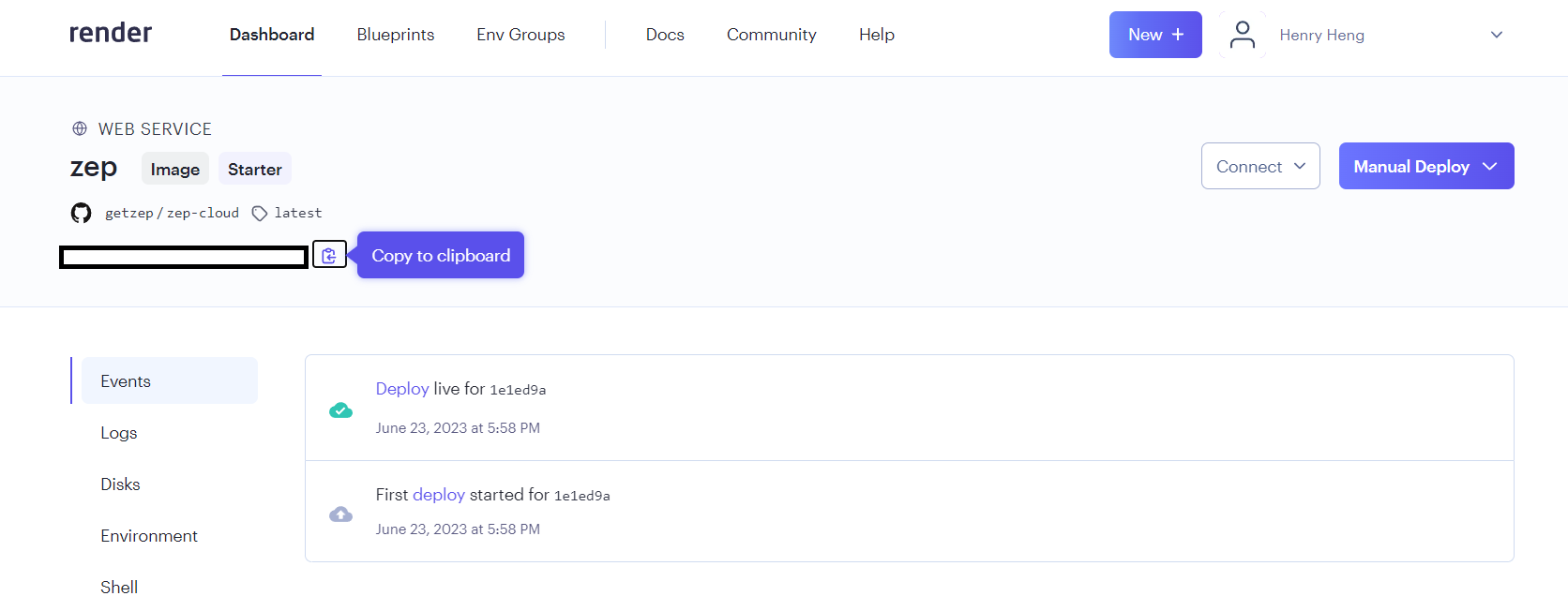

4. Simply click the first one called **zep** and copy the deployed URL

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-32c0f035977d89184808b560e4e5736244d50d4d%2Fimage%20(38)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

## Guide to Deploy Zep to Digital Ocean (via Docker)

1. Clone the Repo

```bash
git clone https://github.com/getzep/zep.git
cd zep
nano .env

```

2. Add IN your OpenAI API Key in.ENV

```bash
ZEP_OPENAI_API_KEY=

```

```bash
docker compose up -d --build
```

3. Allow firewall access to port 8000

```bash
sudo ufw allow from any to any port 8000 proto tcp
ufw status numbered
```

If using Digital ocean separate firewall from dashboard, make sure port 8000 is added there too

## Use in Flowise UI

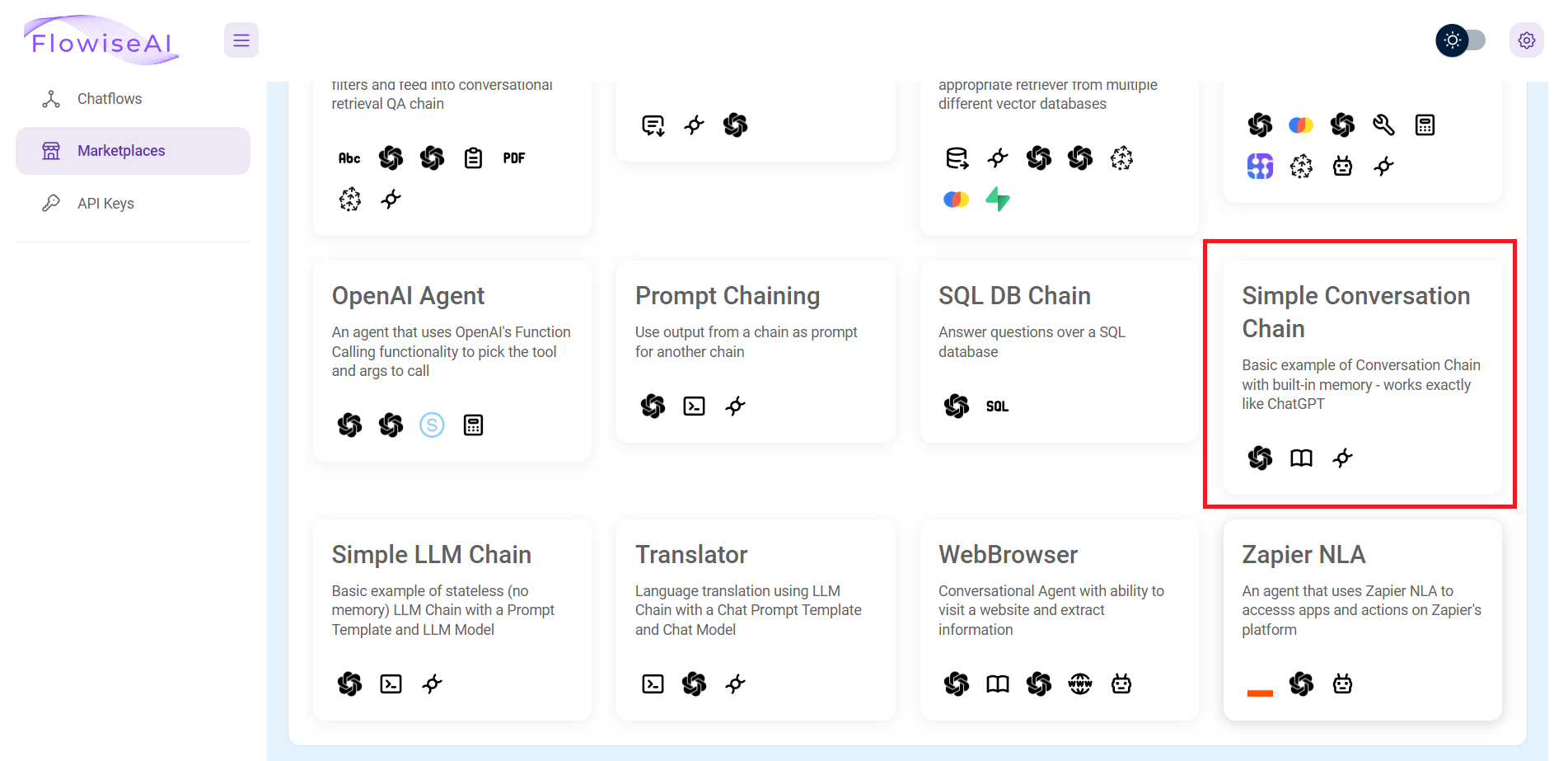

1. Back to Flowise application, simply create a new canvas or use one of the template from marketplace. In this example, we are going to use **Simple Conversational Chain**

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-36ea61940d0dffa66cccadf185aba430e50890a2%2FUntitled%20(3)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

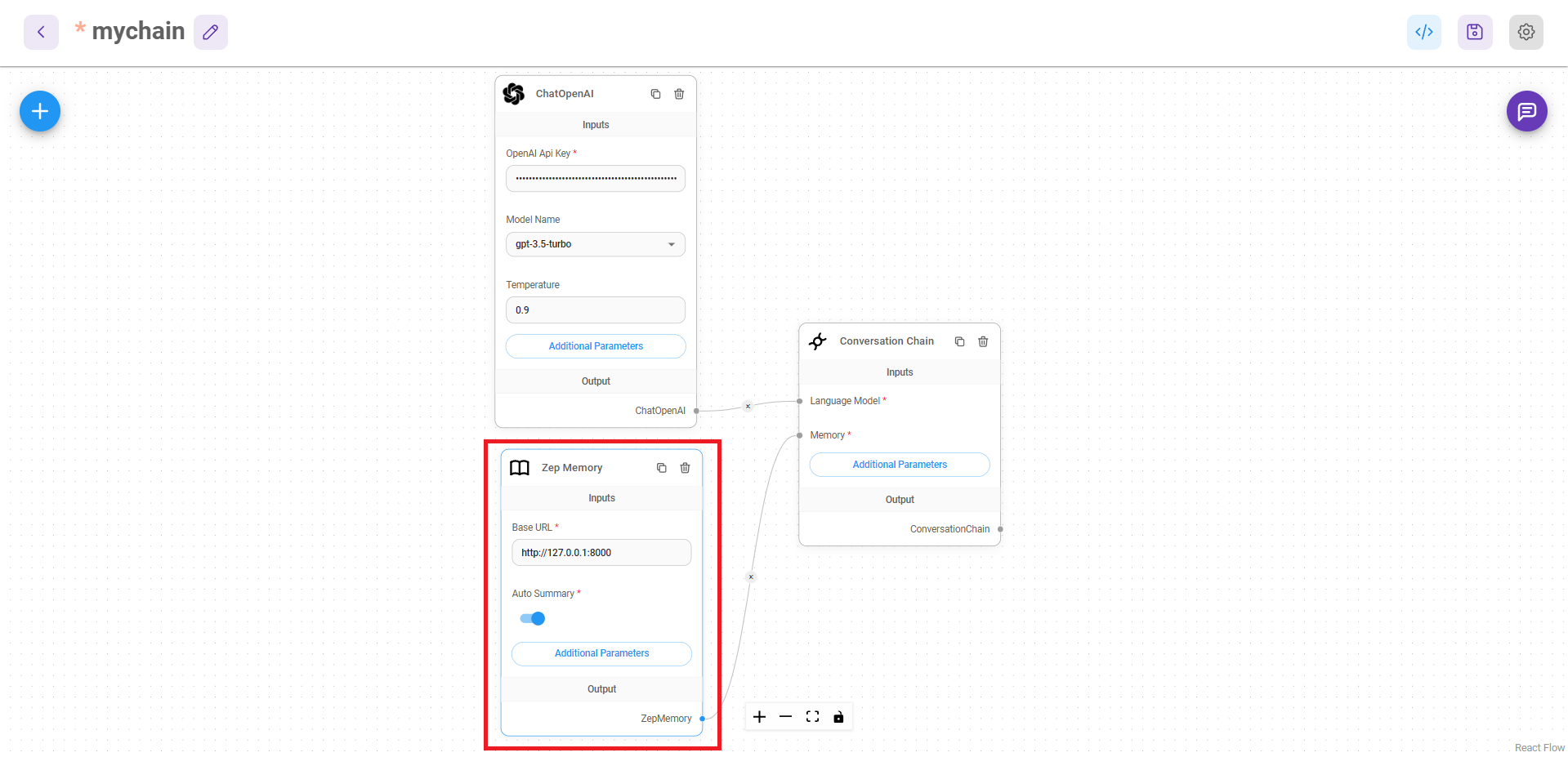

2. Replace **Buffer Memory** with **Zep Memory**. Then replace the **Base URL** with the Zep URL you have copied above

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-062bbf38fe80bf71a783f3aee55b0bfab98b71ea%2FUntitled%20(5).png?alt=media" alt=""><figcaption></figcaption></figure>

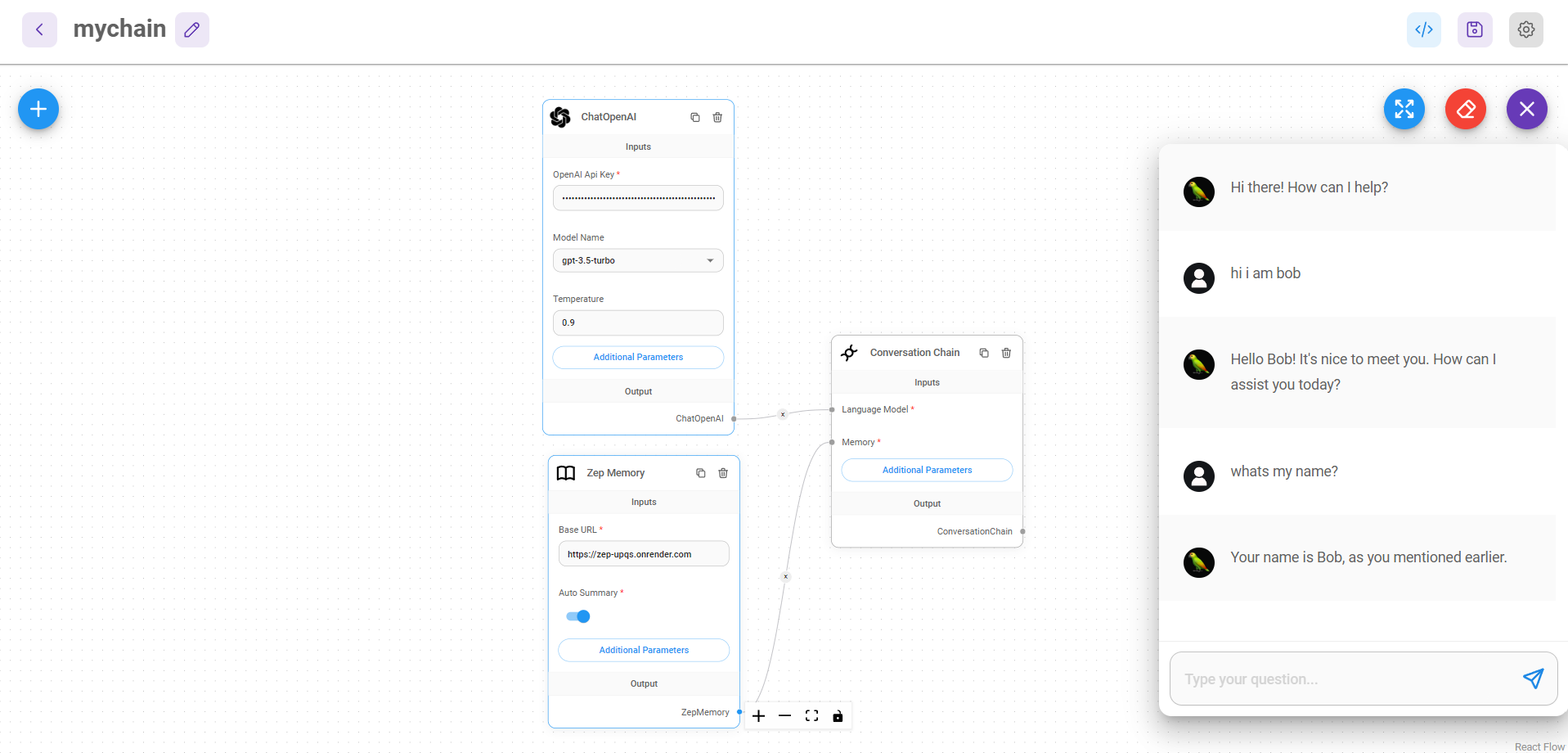

3. Save the chatflow and test it out to see if conversations are remembered.

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-26be80999cf465c51749a3c5653978e561dbf290%2Fimage%20(27).png?alt=media" alt=""><figcaption></figcaption></figure>

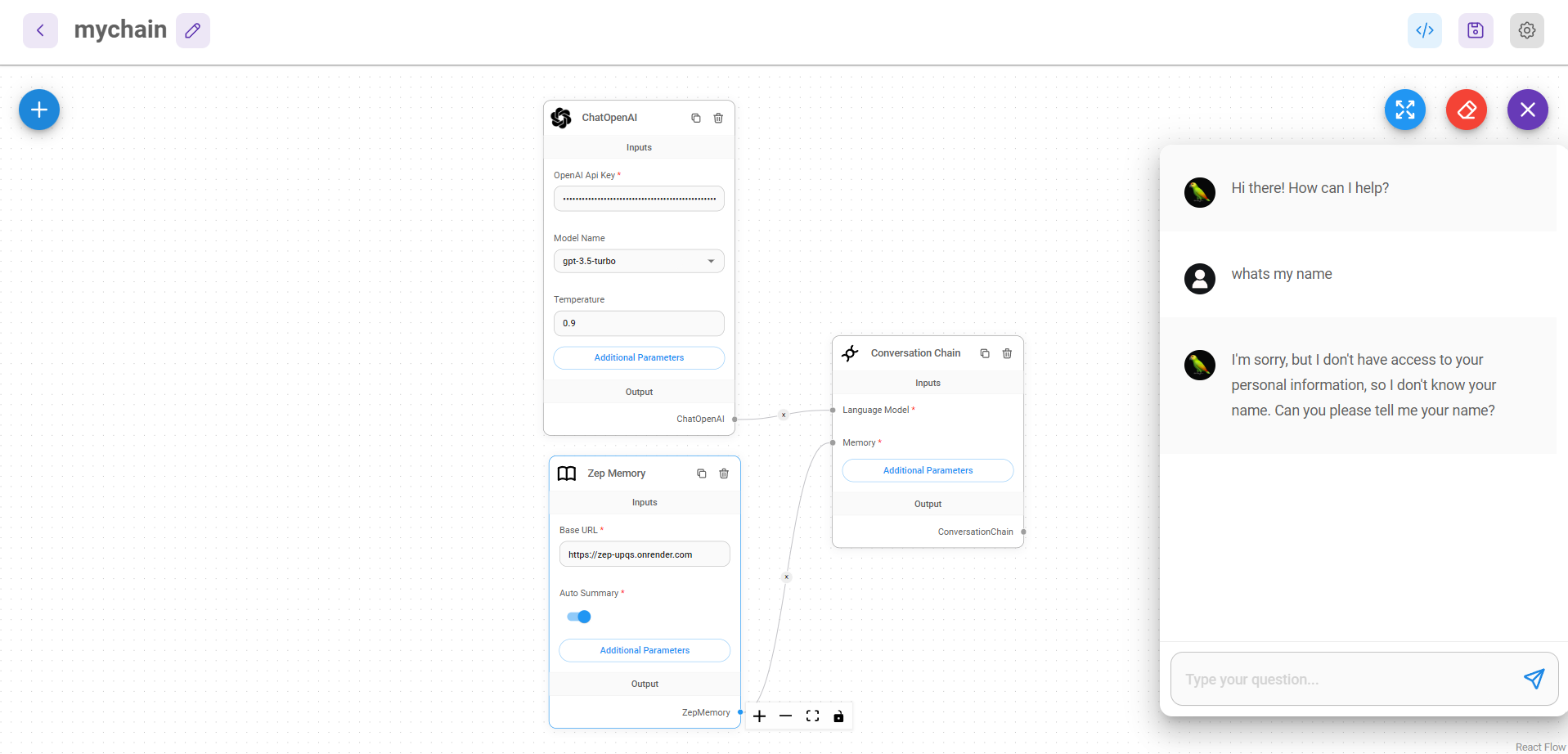

4. Now try clearing the chat history, you should see that it is now unable to remember the previous conversations.

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-b2bf4e1d0314404cba1c138568dac088a1d85b94%2Fimage%20(8)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

## Zep Authentication

Zep allows you to secure your instance using JWT authentication. We'll be using the `zepcli` command line utility [here](https://github.com/getzep/zepcli/releases).

#### 1. Generate a secret and the JWT token <a href="#id-1-generate-a-secret-and-the-jwt-token" id="id-1-generate-a-secret-and-the-jwt-token"></a>

After downloaded the ZepCLI:

On Linux or MacOS

```
./zepcli -i
```

On Windows

```
zepcli.exe -i
```

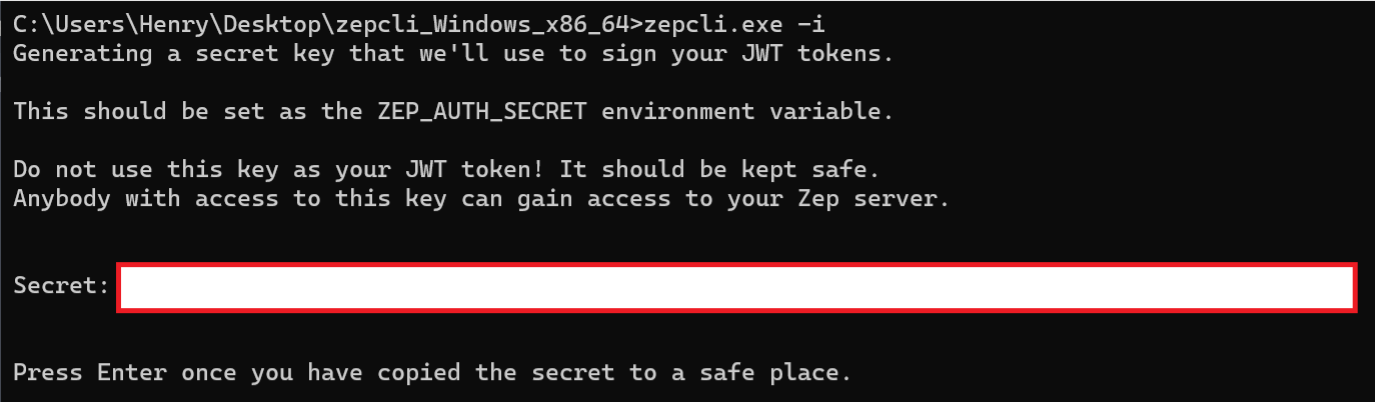

You will first get your SECRET Token:

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-3d7f3708c1e004adc25e628bc46a37d09f11cfe4%2Fimage%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

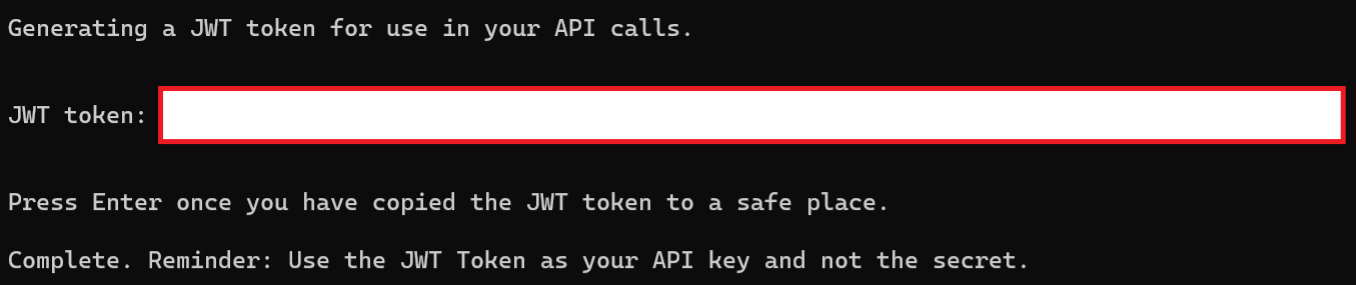

Then you will get JWT Token:

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-e4476d4ae2ba174d4fca9657ca32d62973d97d51%2Fimage%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>

#### 2. Configure Auth environment variables <a href="#id-2-configure-auth-environment-variables" id="id-2-configure-auth-environment-variables"></a>

Set the following environment variables in your Zep server environment:

```
ZEP_AUTH_REQUIRED=true
ZEP_AUTH_SECRET=<the secret you generated above>
```

#### 3. Configure Credential on Flowise <a href="#id-2-configure-auth-environment-variables" id="id-2-configure-auth-environment-variables"></a>

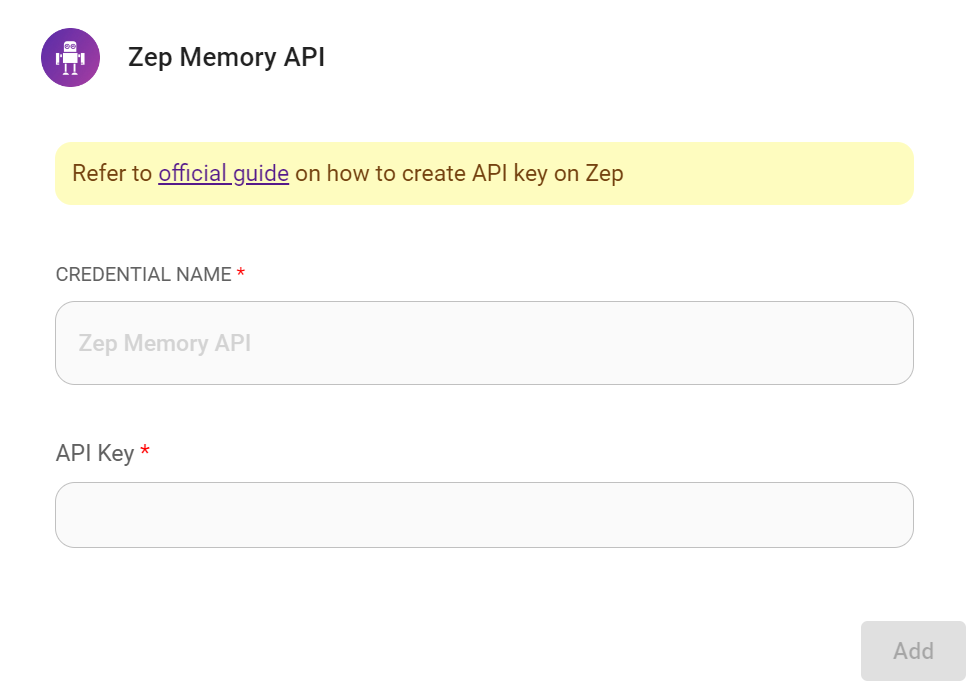

Add a new credential for Zep, and put in the JWT Token in the API Key field:

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-6d23847f1112376e204b91ac0c7cc3069289b6d6%2Fimage%20(2)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt="" width="563"><figcaption></figcaption></figure>

#### 4. Use the created credential on Zep node <a href="#id-2-configure-auth-environment-variables" id="id-2-configure-auth-environment-variables"></a>

In the Zep node Connect Credential, select the credential you have just created. And that's it!

<figure><img src="https://823733684-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F00tYLwhz5RyR7fJEhrWy%2Fuploads%2Fgit-blob-faa434419943ca2b87d97afd9cca339a644d1c34%2Fimage%20(3)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1)%20(1).png?alt=media" alt=""><figcaption></figcaption></figure>
