Figma

Load data from a Figma file.

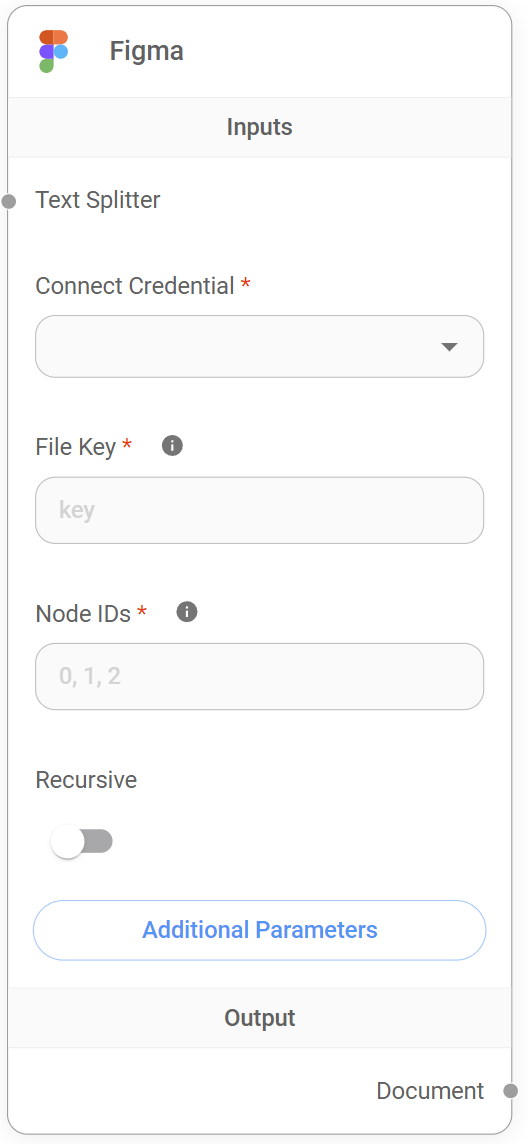

Figma Node

Figma is a collaborative web application for interface design. This module provides functionality to load and process content from Figma files, including text, components, and metadata.

This module provides a sophisticated Figma document loader that can:

  • Load content from specific Figma files

  • Extract text from selected nodes

  • Process content recursively

  • Handle authentication with Figma API

  • Process content with text splitters

  • Customize metadata extraction

Inputs

Required Parameters

  • File Key: The unique identifier for the Figma file (from file URL)

  • Node IDs: Comma-separated list of node identifiers to extract

  • Connect Credential: Figma API credentials (access token)

Optional Parameters

  • Recursive: Whether to process nodes recursively

  • Text Splitter: A text splitter to process the extracted content

  • Additional Metadata: JSON object with additional metadata

  • Omit Metadata Keys: Comma-separated list of metadata keys to omit

Outputs

  • Document: Array of document objects containing metadata and pageContent

  • Text: Concatenated string from pageContent of documents

Features

  • API-based content extraction

  • Node-level content selection

  • Recursive processing

  • Text splitting support

  • Metadata customization

  • Error handling

  • Authentication management

File Key Format

The file key can be found in the Figma file URL:

https://www.figma.com/file/:key/:title

Example: In https://www.figma.com/file/12345/Website, the file key is 12345

Node IDs

To get Node IDs:

  1. Install the Node Inspector plugin in Figma

  2. Select the desired elements

  3. Copy the Node IDs from the inspector

  4. Use comma-separated format: "0, 1, 2"

Notes

  • Requires valid Figma access token

  • Node IDs must be valid for the file

  • Supports recursive content extraction

  • Can process multiple nodes at once

  • Handles API rate limits and errors

  • Preserves node hierarchy in metadata

  • Supports custom metadata addition
