GCP

Learn how to deploy Flowise on GCP

PreviousDigital OceanNextHugging Face

Last updated 4 months ago


Prerequisites

  1. Notedown your Google Cloud [ProjectId]

  2. Install

  3. Install the

  4. Install

Setup Kubernetes Cluster

  1. Create a Kubernetes Cluster if you don't have one.

  1. Name the Cluster, choose the right resource location, use Autopilot mode and keep all other default configs.

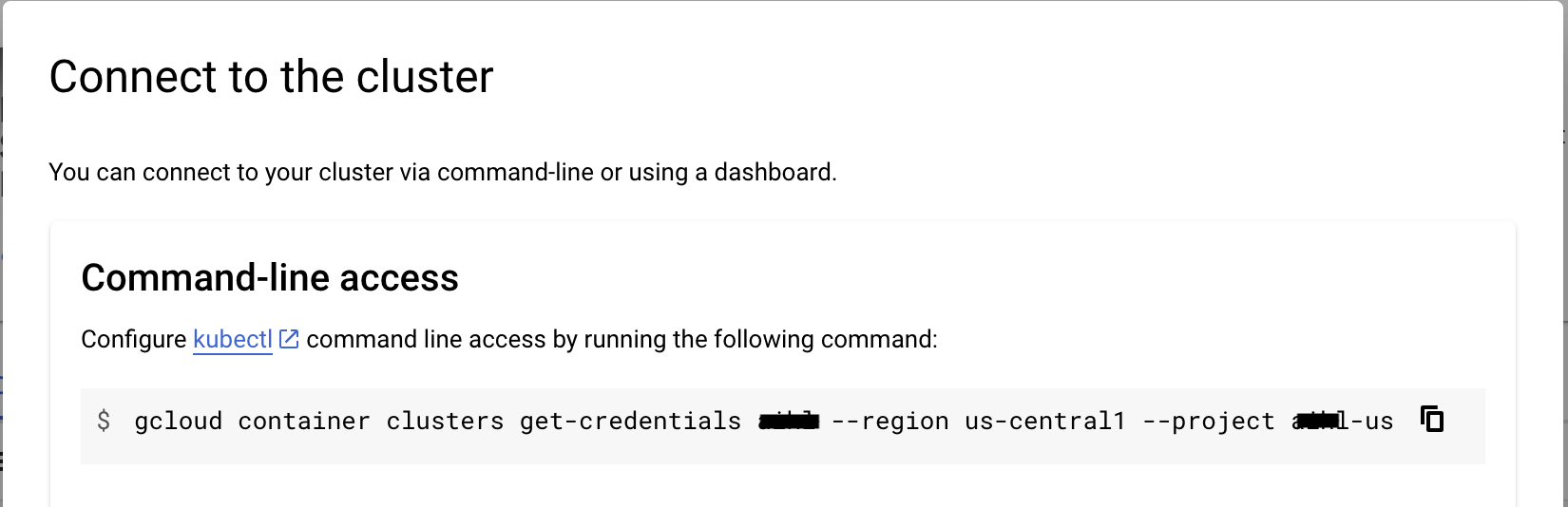

  2. Once the Cluster is created, Click the 'Connect' menu from the actions menu

  1. Copy the command and paste into your terminal and hit enter to connect your cluster.

  2. Run the below command and select correct context name, which looks like gke_[ProjectId]_[DataCenter]_[ClusterName]

kubectl config get-contexts
  1. Set the current context

kubectl config use-context gke_[ProjectId]_[DataCenter]_[ClusterName]

Build and Push the Docker image

Run the following commands to build and push the Docker image to GCP Container Registry.

  1. Clone the Flowise

git clone https://github.com/FlowiseAI/Flowise.git
  1. Build the Flowise

cd Flowise
pnpm install
pnpm build
  1. Update the Dockerfile file a little.

Specify the platform of nodejs

FROM --platform=linux/amd64 node:18-alpine

Add python3, make and g++ to install

RUN apk add --no-cache python3 make g++
  1. Build as Docker image, make sure the Docker desktop app is running

docker build -t gcr.io/[ProjectId]/flowise:dev .
  1. Push the Docker image to GCP container registry.

docker push gcr.io/[ProjectId]/flowise:dev

Deployment to GCP

  1. Create a yamls root folder in the project.

  2. Add the deployment.yaml file into that folder.

# deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: flowise
  labels:
    app: flowise
spec:
  selector:
    matchLabels:
      app: flowise
  replicas: 1
  template:
    metadata:
      labels:
        app: flowise
    spec:
      containers:
      - name: flowise
        image: gcr.io/[ProjectID]/flowise:dev
        imagePullPolicy: Always
        resources:
          requests:
            cpu: "1"
            memory: "1Gi"
  1. Add the service.yaml file into that folder.

# service.yaml
apiVersion: "v1"
kind: "Service"
metadata:
  name: "flowise-service"
  namespace: "default"
  labels:
    app: "flowise"
spec:
  ports:
  - protocol: "TCP"
    port: 80
    targetPort: 3000
  selector:
    app: "flowise"
  type: "LoadBalancer"

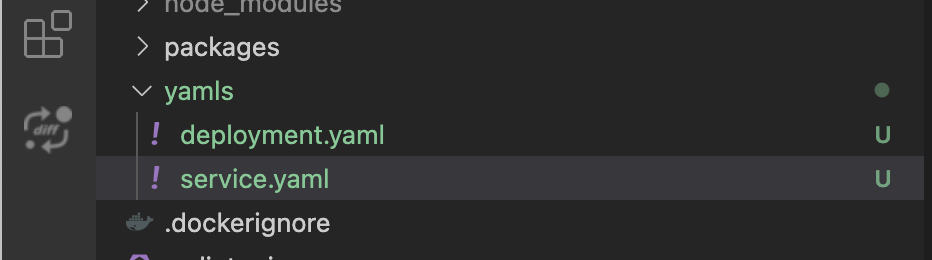

It will be look like below.

  1. Deploy the yaml files by running following commands.

kubectl apply -f yamls/deployment.yaml
kubectl apply -f yamls/service.yaml

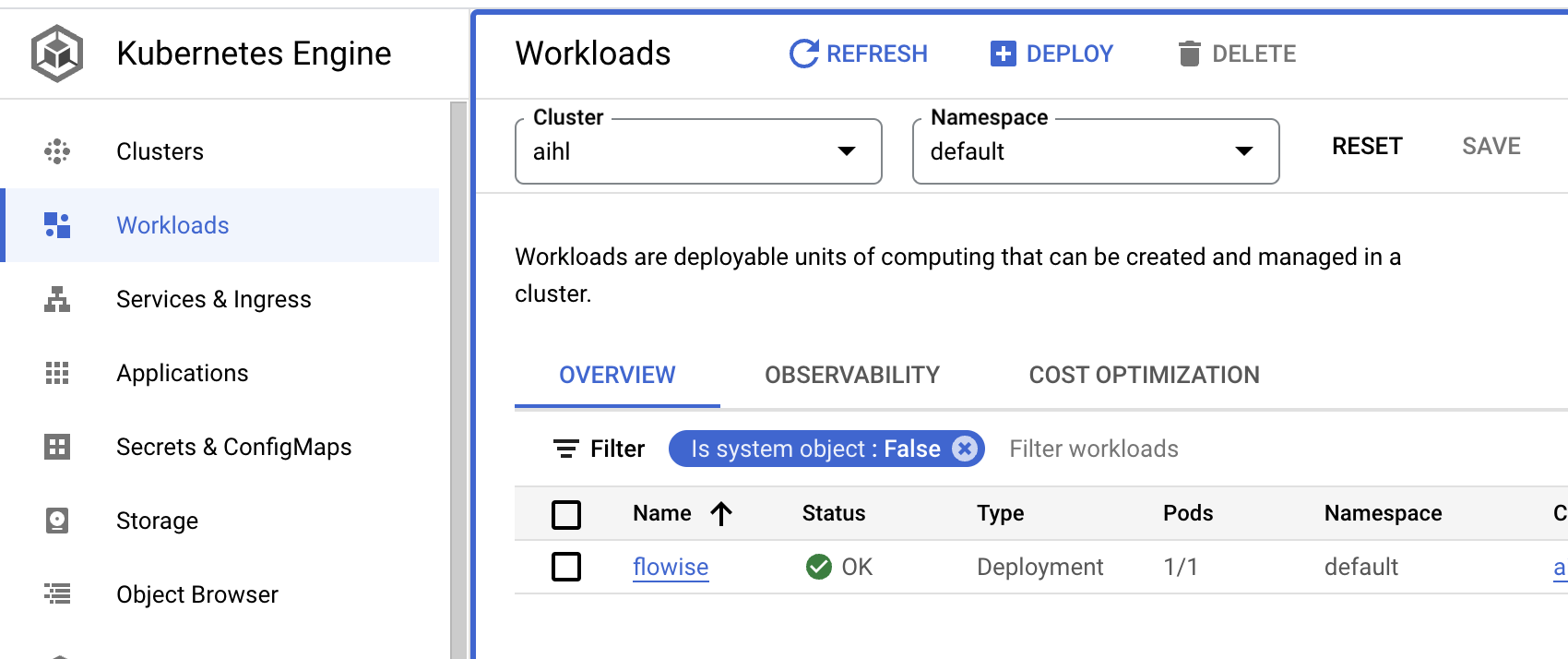

  1. Go to Workloads in the GCP, you can see your pod is running.

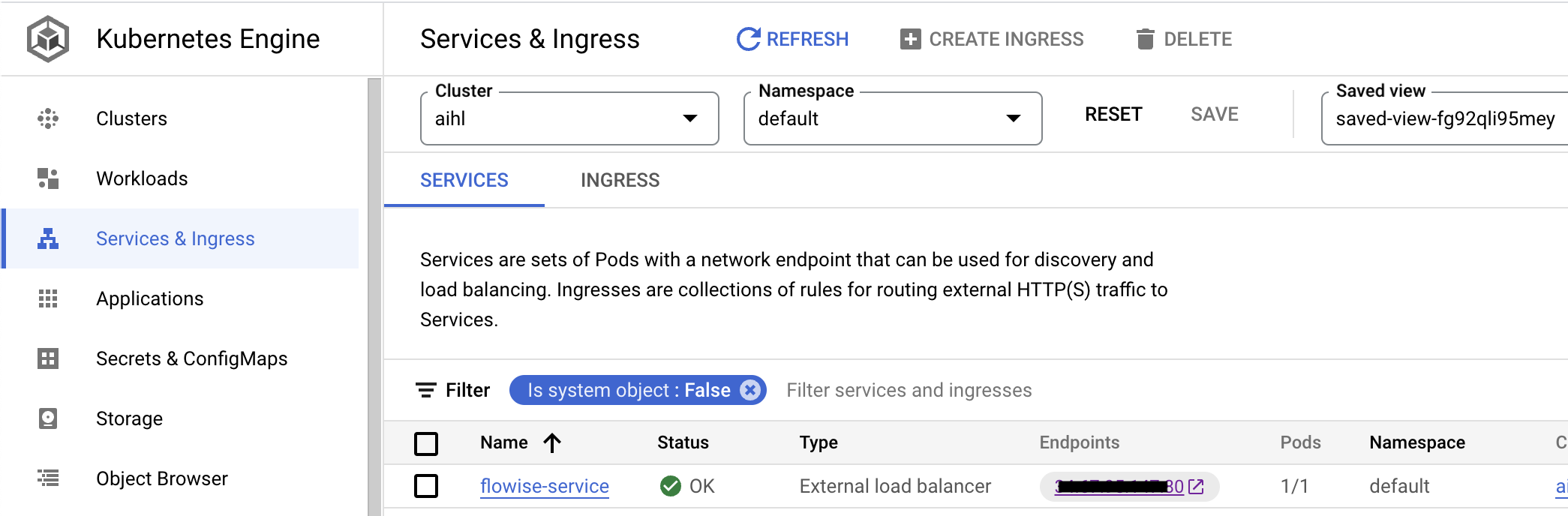

  1. Go to Services & Ingress, you can click the Endpoint where the Flowise is hosted.

Congratulations!

Timeout

By default, there is a 30 seconds timeout assigned to the proxy by GCP. This caused issue when the response is taking longer than 30 seconds threshold to return. In order to fix this issue, make the following changes to YAML files:

Note: To set the timeout to be 10 minutes (for example) -- we specify 600 seconds below.

  1. Create a backendconfig.yaml file with the following content:

apiVersion: cloud.google.com/v1
kind: BackendConfig
metadata:
  name: flowise-backendconfig
  namespace: your-namespace
spec:
  timeoutSec: 600
  1. Issue: kubectl apply -f backendconfig.yaml

  2. Update your service.yaml file with the following reference to the BackendConfig:

apiVersion: v1
kind: Service
metadata:
  annotations:
    cloud.google.com/backend-config: '{"default": "flowise-backendconfig"}'
  name: flowise-service
  namespace: your-namespace
...
  1. Issue: kubectl apply -f service.yaml

You have successfully hosted the Flowise apps on GCP

🥳
Git
Google Cloud CLI
Docker Desktop

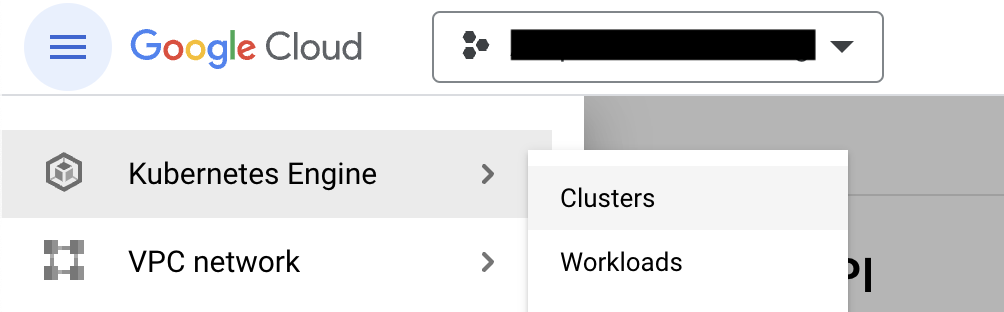

Click `Clusters` to create one.
