# Azure ChatOpenAI

## Prerequisitos

1. [Inicia sesión](https://portal.azure.com/) o [regístrate](https://azure.microsoft.com/en-us/free/) en Azure
2. [Crea](https://portal.azure.com/#create/Microsoft.CognitiveServicesOpenAI) tu Azure OpenAI y espera la aprobación aproximadamente 10 días hábiles
3. Tu clave API estará disponible en **Azure OpenAI** > haz clic en **name\_azure\_openai** > haz clic en **Click here to manage keys**

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-72057c9d27157f7a6505d2e485b8ebfcce94d92f%2F1.png?alt=media" alt=""><figcaption></figcaption></figure>

## Configuración

### Azure ChatOpenAI

1. Haz clic en **Go to Azure OpenaAI Studio**

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-7b13de5666fb6760c85f7fc9bf0ba301b7233c25%2F2.png?alt=media" alt=""><figcaption></figcaption></figure>

2. Haz clic en **Deployments**

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-ca86df36af6c3b809b33f4b31f1cc295ff054d3f%2F3.png?alt=media" alt=""><figcaption></figcaption></figure>

3. Haz clic en **Create new deployment**

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-1ab63c852f1ab95a2b6b3bc281180ad83537a6c2%2F4.png?alt=media" alt=""><figcaption></figcaption></figure>

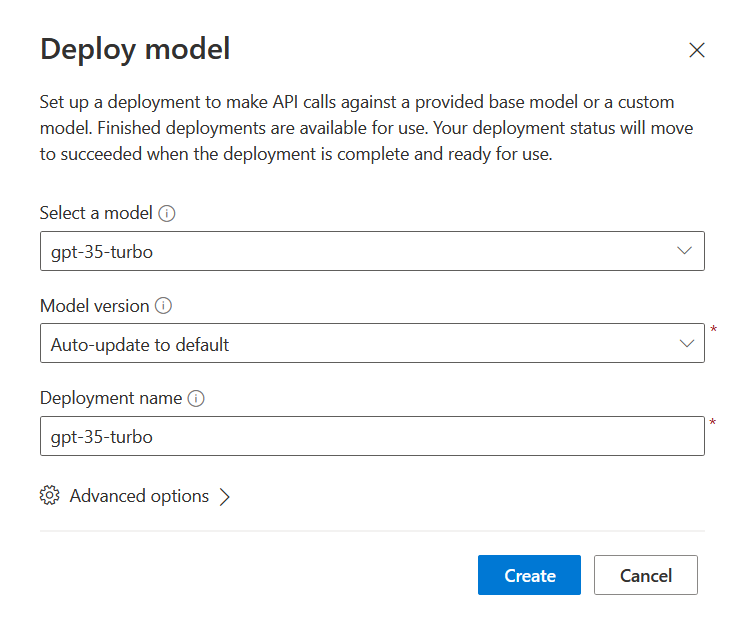

4. Selecciona como se muestra a continuación y haz clic en **Create**

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-acc35368c47ed7011717ea079617734322d3f69c%2F1.png?alt=media" alt="" width="558"><figcaption></figcaption></figure>

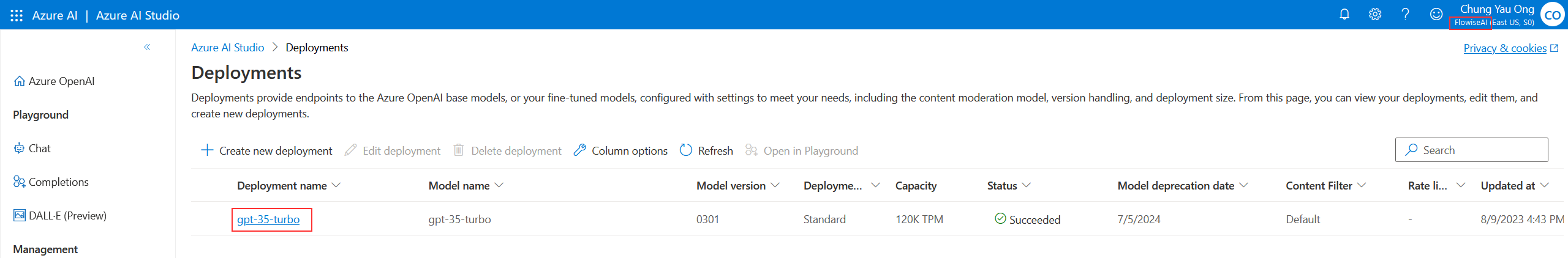

5. Se ha creado exitosamente **Azure ChatOpenAI**

* Nombre del deployment: `gpt-35-turbo`
* Nombre de la instancia: `esquina superior derecha`

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-372177be5f9950cf6bf8565b2d304379195cd4aa%2F2.png?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-7b13de5666fb6760c85f7fc9bf0ba301b7233c25%2F2.png?alt=media" alt=""><figcaption></figcaption></figure>

### Flowise

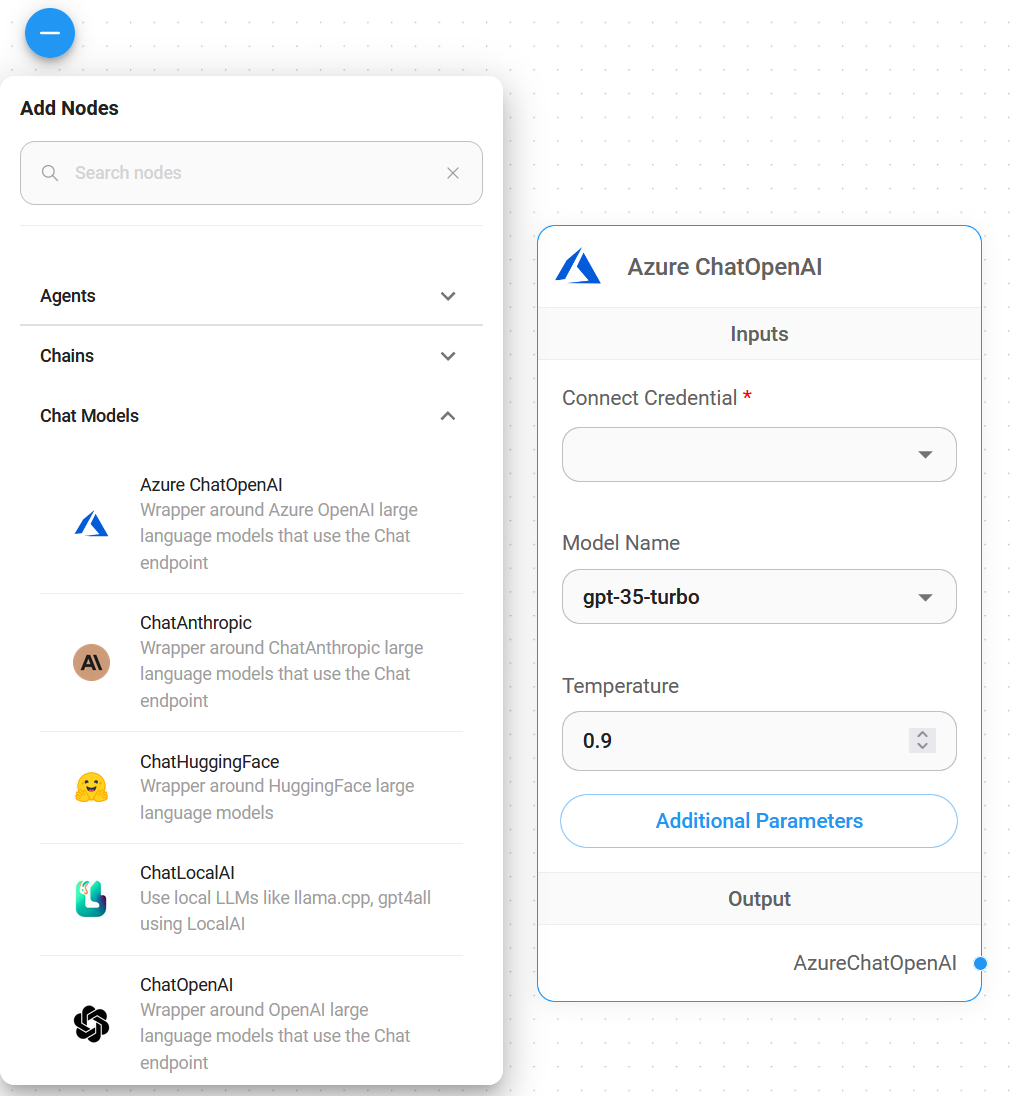

1. **Chat Models** > arrastra el nodo **Azure ChatOpenAI**

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-7d887c7934f9b7ce6bbca95519bc778876bdadab%2F3.png?alt=media" alt="" width="563"><figcaption></figcaption></figure>

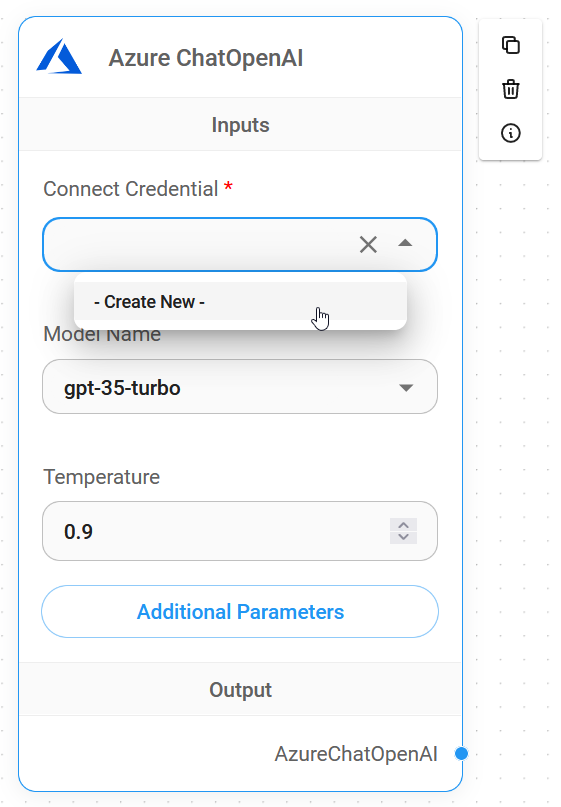

2. **Connect Credential** > haz clic en **Create New**

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-037927226082ef204a82a3eb6364f7e395e01c85%2F4.png?alt=media" alt="" width="421"><figcaption></figcaption></figure>

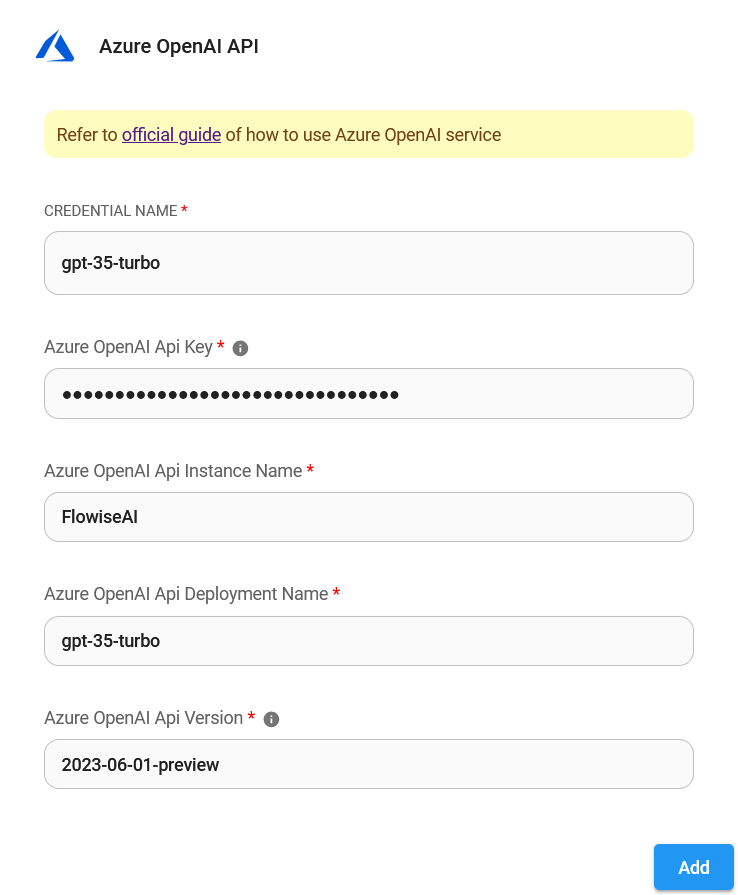

3. Copia y pega cada detalle (API Key, Instance & Deployment name, [API Version](https://learn.microsoft.com/en-us/azure/ai-services/openai/reference#chat-completions)) en la credencial de **Azure ChatOpenAI**

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-d53b56b1d942b4d631c00db8346467ff37510fd2%2F5.png?alt=media" alt="" width="563"><figcaption></figcaption></figure>

4. ¡Voilà [🎉](https://emojipedia.org/party-popper/), has creado el **nodo Azure ChatOpenAI** en Flowise

<figure><img src="https://4068692976-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FUiD7nOmFRK805sNuiieJ%2Fuploads%2Fgit-blob-ba561ad06c30c3d52d997de67a3e9c15b444c02c%2F5.png?alt=media" alt=""><figcaption></figcaption></figure>

## Recursos

* [LangChain JS Azure ChatOpenAI](https://js.langchain.com/docs/modules/model_io/models/chat/integrations/azure)
* [Referencia de la API REST de Azure OpenAI Service](https://learn.microsoft.com/en-us/azure/ai-services/openai/reference)
